In a remarkable leap for robotics and artificial intelligence, a four-legged machine has taken to the badminton court not just as a novelty act but as a genuine player capable of rallying with humans. Researchers have successfully trained a quadruped robot named ANYmal to play badminton rallies, skillfully coordinating its legs, body, and an attached robotic arm to return shuttlecocks with surprising accuracy. This milestone demonstrates how cutting-edge AI can integrate real-time vision and whole-body motion to tackle tasks once thought exclusive to humans.

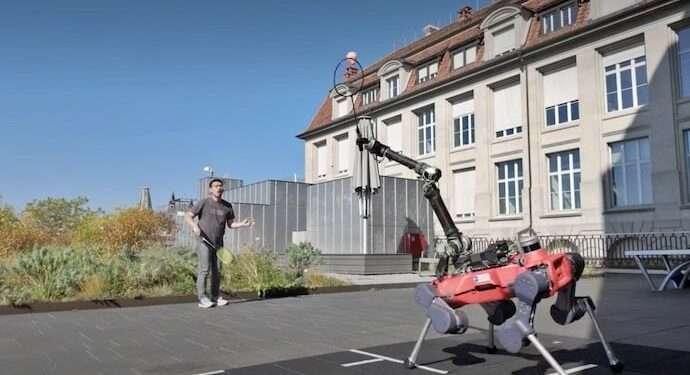

The protagonist of this achievement, ANYmal, is no stranger to robotics research. Typically, it serves in industrial and rescue applications, navigating complex terrains with its four legs. Standing half a meter tall and weighing around 50 kilograms, ANYmal has now been upgraded for something entirely different: competitive sports.
To turn a robot dog into a badminton player, researchers equipped it with a long robotic arm, a badminton racket mounted at a 45-degree angle, and a stereo camera for visual tracking. This setup gave the quadruped machine a total height of 1.6 meters when fully extended roughly comparable to a human opponent.
“This is not just about sport,” explains lead researcher Yuntao Ma of the Robotic Systems Lab at ETH Zurich. “It shows how a robot can coordinate complex movements with vision in real time.”
The Science Behind the Skills: Neural Networks and 50 Million Trials
Teaching a robot to play badminton required more than simply attaching a racket. The team created a high-fidelity simulation of a badminton court and subjected ANYmal to a staggering 50 million trial sessions.
At the core of this achievement is a neural network trained to manage:
- 18 joints controlling the robot’s four legs and its racket arm
- Visual inputs to detect the shuttlecock in midair
- Reward-based learning, where successful returns improved its performance
The robot was rewarded for racket positioning, swing angle, shuttle speed, and movement efficiency. These carefully designed incentives encouraged it to develop techniques mirroring human strategies from swing preparation to court positioning.
Once trained in simulation, the neural network was transferred to the real-world machine. ANYmal faced shuttlecocks served at different speeds and angles by a serving device, gradually learning how to scuttle, scramble, and even gallop across the court.
Key observations from testing:
- Swing speed reached up to 12 meters per second, roughly half that of an amateur human player.
- ANYmal adapted movement depending on distance standing still for short serves, sprinting across the court for longer ones.
- The robot learned to return to the court’s center after each shot, mimicking the tactical resets seen in human players.
Through this iterative process, ANYmal achieved rallies of up to ten consecutive shots, demonstrating not just technical capability but also tactical awareness.
While impressive, ANYmal is not yet ready to compete with professionals. One major limitation is its inability to anticipate an opponent’s next move. Without predictive modeling of human posture or racket position, the robot cannot forecast shuttlecock trajectories as a human would.
The researchers believe that integrating:
- Pose recognition (to read an opponent’s swing)
- A flexible neck joint (to widen the field of view)
- Higher-speed actuators (to close reaction gaps)
…could significantly improve performance.
These improvements would not only enhance sports capability but also expand the robot’s value in real-world applications where speed, agility, and vision must be coordinated in unpredictable environments.
Beyond Badminton: The Real-World Impact of Complex Motor Coordination
The badminton project is not about turning robots into athletes for entertainment. Instead, it demonstrates how AI-powered robotics can merge vision, planning, and precise physical control skills that can save lives in the future.
Potential applications include:
- Disaster relief operations, where robots must navigate rubble, recognize victims, and remove debris delicately.
- Industrial inspection in hazardous zones, where both agility and environmental perception are crucial.
- Collaborative robots in healthcare or logistics, capable of safely moving alongside humans while performing intricate tasks.
By proving that a quadruped robot can coordinate a racket, shuttlecock trajectory, and dynamic body positioning in real time, researchers have opened the door to a new generation of AI-driven machines that balance speed, safety, and skill.
In a broader sense, ANYmal’s badminton skills represent a symbolic milestone. Sports are inherently unpredictable, requiring a blend of reflexes, prediction, and strategy qualities long considered the frontier of human superiority over machines. By stepping onto the badminton court, ANYmal shows that robots can move beyond pre-programmed motions to adaptive, game-like decision-making.
As robots increasingly share our spaces from workplaces to homes the ability to interact in natural, fluid ways becomes critical. Whether through cooperative play, collaborative tasks, or coordinated rescue missions, the lessons from ANYmal’s badminton rallies may soon translate into safer, smarter, and more capable robotic partners.
The sight of a robot galloping across a badminton court may feel like a novelty now, but it signals something profound: AI-driven robotics is evolving rapidly from repetitive factory labor to complex, human-like interaction. ANYmal’s achievement is not just a sports story it’s a glimpse of a future where machines learn, adapt, and move with us in ways that once belonged to science fiction.
As Yuntao Ma aptly puts it: “It shows how a robot can coordinate complex movements with vision in real time.” Today, it’s a badminton rally. Tomorrow, it could be saving lives, rebuilding cities, or teaming up with humans in ways we are only beginning to imagine.
